Asvegen BSD BSA Radar Blind Safer Spot Detection System
Microwave Blind Spot Monitoring BSM Car Driving Security Warning Buzzer
Function Introduction
After installation of this system, when the vehicle is started, the microwave sensors on both sides of the rear will send a microwave sounding signal backwards. When a vehicle in the blind area is detected to be approaching, the system will processes the reflected signal. When it confirms that there is an object approaching, it alerts driver by issuing the corresponding sound and light signals.
1.When the vehicle is approaching, the corresponding side of the LED lights will be lit to prompt the rear of the vehicle near.
2.When the LED is lit, if the driver turns on the corresponding turn signal, the LED will flash and the buzzer will sound to indicate that the turnaround is risky at this time.
3.After the vehicle is stopped, the system delays for 30s. When there are bicycles, electric cars, motorcycles, pedestrians and other vehicles near the vehicle, the system will light up and there is a risk of opening the doors. Please confirm the safety before opening the doors.
the application features and scenarios
1. Rainy weather, windshields and mirrors are covered with water droplets, blurred vision, change the road is very dangerous.
2. Foggy weather, traffic visibility is low, line of sight shorter, rear blur mirror, changing lanes is dangerous.
3 snowy weather, glass, mirror ice, eyes were disturbed, blurred vision, change the road is very dangerous.
4. Inattention, chatting with other people, blind change, very dangerous.
wiring
Yellow line is connected with common battery, battery B +
red line then ACC +
Black line grounding -
Turn lights connect to the positive of the corresponding lamp
Other extension wire directly marked according to the mark
Installation requirements
The signal transmitting surface of the sensor can only penetrate the plastic bumper shell and can not penetrate the metal.
The sensor may be affected by fluorescent light
The sensor should be firmly fixed with a bracket or 3M glue without shaking.
The sensor terminals are vertically downward and parallel outward 25 °
Instructions for use:
When it detects moving vehicle or people near, the corresponding LED warning light will flash to alarm.
When the alarm light is on, if the driver turns on the corresponding turn light, the LED alarm light flashes, and the buzzer sounds alarm.

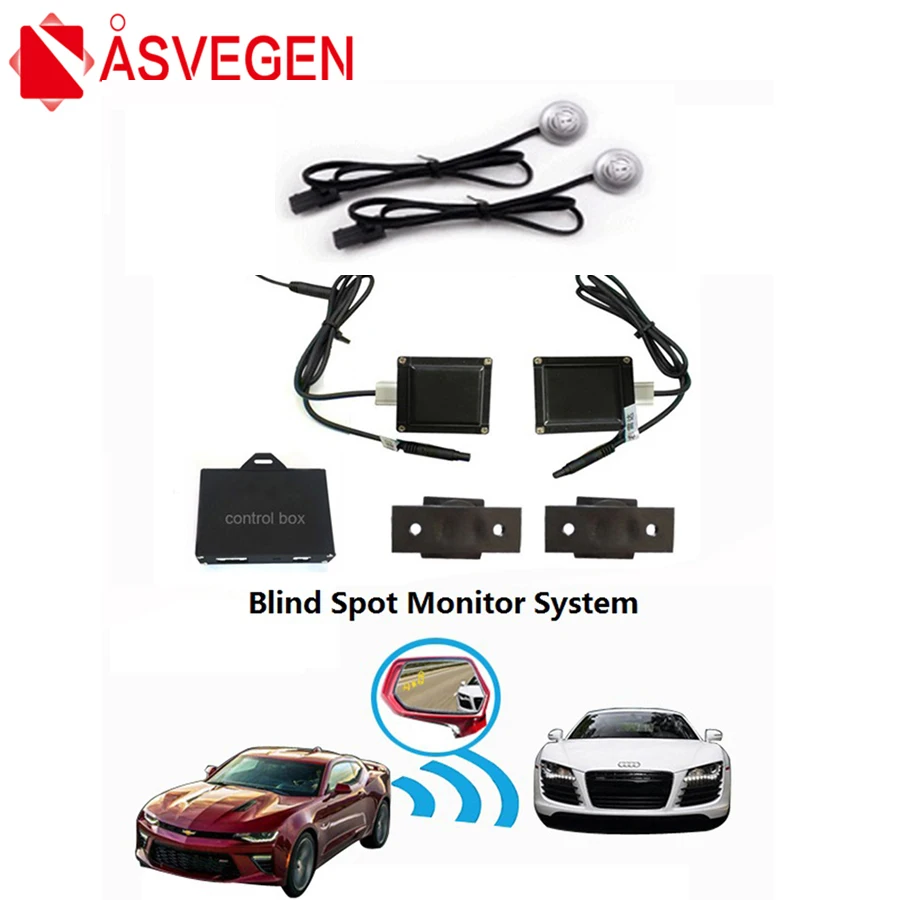

Products list
-
BSD host 1 PCs
-
Sensor 2 PCs
-
LED warning light 2 PCs
Optional: Special rear mirror 2 PCs( Customized Price : add 40$)
-
External buzzer 1 PCs
-
Main harness 1 PCs
-
BSD wiring harness 1 PCs
-
Extension cord 4 PCs
-
Fixed bracket 1 PCs
-
3M tape 4 PCs
-
Manual 1 PCs
-
Angle feet 1 PCs
FAQ:
1. What is BSD?
BSD(Blind Spot Detection) System: BSD warn the driver against collisions that may occur due to a lane change manoeuvre. BSD are intended to supplement the vehicle’s interior and exterior rear-view mirrors. BSD are intended to detect vehicles to the rear and sides of the subject vehicle (see Figure). When the subject vehicle driver indicates the desire to make a lane change, the system evaluates the situation and warns the driver if a lane change is not recommended. The system will not take any automatic action to prevent possible collisions. Responsibility for the safe operation of the vehicle remains with the driver.
2. Does it need make hole to install radar sensor?
No, BSD is different the normal parking sensor, BSD is with left and right microwave radar, it will be pasted on the bumper, the alarm range is 3-15m
3. Why your product no main device?
Our microwave radar build in DSP processor, it can directly transfer the command signal to the LED light, so it can save the transfer time, make sure your safe driving.
