Toyota Player Screen Tesla Asvegen 6.0 Navigation Prado Vertical 12.1 Gps Car Core Radio Android Multimedia Marianne Melodie Rating: 4.8 out of 5
Perfect

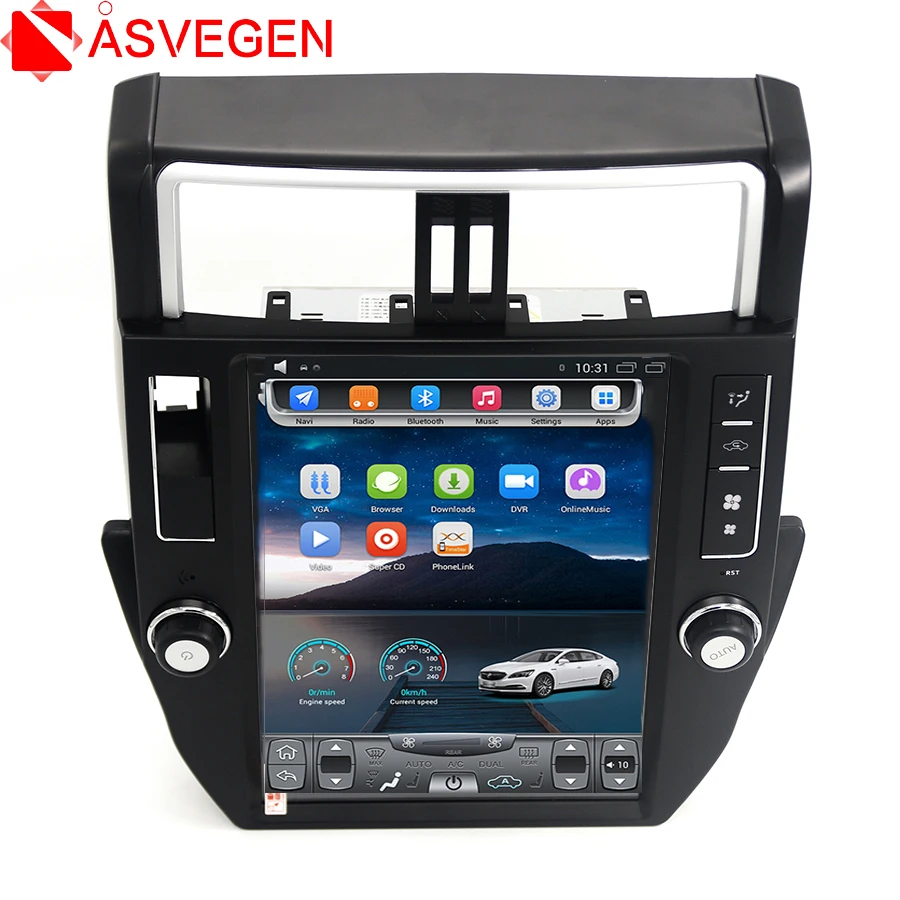

Asvegen 12.1 Android 6.0 Tesla Vertical Screen Quad Core Car Radio Multimedia Player GPS Navigation For Toyota PRADO
| System and Hardware Parameters ( Quad Core) | |
| OS | Android 6.0system |
| CPU | Quad Core 8*1.5Ghz |
| RAM | SAMSUNG DDR3 2GB |
| Flash | 32 GB |
| Display | HD Display 1024*600 |
| Radio | FM1;FM2;FM3;AM1;AM2 |
| GPS | Ublox 6; Support GPS and Glonass |
| Screen | Capacitive and multi-touch screen (Original Hanstar Screen ) |
| TFT drive IC | PX5 |
| Loader | FORYOU DL-30 |
| Pick up | HITACHI 1200XH |
| motor drive | MABUCHI |
| Amplifer IC | ST TDA7388 |
| DVD decoder IC | Sunplus8202TQ |
| Radio IC | NXP TEF6686 |
| Panel buttons Colour | R*G*B |
| Power supply | 4*50W (MOSFET OUTPUT) |
| Bluetooth | CSR |
| Video Decoder | HD 1920*1080 |
| WIFI | Built-in |
| DVR | Support |
| Video Input | Front camrea,Rear camera,AUX |
| Audio Input | AUX-L;AUX-R (2 way) |
| Video Output | Vieo1,Video2 (2 way) |
| Audio Output | FL;FR;RL;RR and Subwoofer (5 way) |
| USB port | USB1;USB2; |
| USB device support | 2TB hard disc |
| SD card port | madia card and map card (2 way) |
| Multi media Parameters | |
| Music Format | MP3、WMA、AAC、RM、FALC etc |
| Video Format | MPEG-1/2/4、H264、H263、VC1、RV、RMVB、DivX、Sorenson SparK、Spark、VP8、AVS Stream… |
| Picture Format | JPG/BMP/JEPG/GIF/PNG |
| Radio Parameters | |
| Frenqency Range | FM：76.0MHz-108.0MHz |
| Frenqency Range | AM: 522KHz-1620KHz |
| Country | China、Europe、Eastern、Europe、Russia、USA1、USA2、Japan |
| DVD Parameters | |
| Video output range | 1.0V-1.2V(75Ω） |
| Compatible Disc | DVD/DIVX/MP4/MP3/MP2/VCD |
| Amplifer Parameters | |
| Test Voltage | 13.8V |
| Max output power | 4*80W |
| GPS Parameters | |
| Operation system | Android 6.0 system |
| Support Map | Android Map |
| Main Frenqency | 1.6GHz |
| Map Solution | Navitel ; igo and more |
| WIFI Parameters | |
| Power supply | Vcc_3.3V |
| Suppoted Protocol/standard | IEEE802.11B/g/n compatible WLAN |
| Interface type | USB2.0 |
| Frequency | 2.4-2.484GHz |
| Modulation | OFDM/DBPSK/DQPSK/CCK |
| RF Power | 15dBM |
| Option Function | |
| TPMS | |
| USB DVR | 1080P |
| DTV | ISDB-T DVB-T |
Main System
Video decoding performance:All format decoding
OS:android 6.0.
Boot Time:Basic application boot 16s,many android application boot 25s
Operation Temperature:-20°C +70°C
Storage Temperature:-30°C +80°C
Operation Current:Noemal 500 mA @ 4.2V
Voltage Input:4.0~4.5V
Sleep Current:<15 mA
GPS
Map:Stored in memory
Map Formate Support:Google map online,Sygic,Papago,3D maps,etc
New Features:Suuport radio/disc/bluetooth/for IPOD/for IPHONE/SD playback while navigating
Voice:Yes
Display
Touch Screen:Capacitive touch screen
Screen Resolution:800*480/1024*600
Wall Paper:Live wallpaper
Drag the icon:Yes
UI Interface:3D Interface
Language
Main Interface Language:English,Russian,French,German,Spanish,Italian,Arabic,etc.20 kinds of language
GPS Console Language:The actual voice and display language depend on GPS software while being used
Internat
3G:Support 3G WCDMA or via phone as WIFI hot spot
WIFI:built-in(optional)
TV
Digital TV:DVB-T(MPEG4), ATSC, ISDB-T,CMMB and etc(optional)
FM/AM Radio
AM Frequency Range:522-1620KHz(China),522-1620KHz(Europe),530-1710KHz(America),522-1620KHz(Russian),18 stations
FM Tuning Range:87.5-108MHz(China),87.5-108MHz(Europe), 87.5-107.9MHz (America),65-108MHz(Russian),36 stations
RDS:Yes
Bluetooth
Support Format:HFP,A2DP,AVRCP
Main Functions:Handsfree optional,phone music playback,auto swith when receiving calls,volume control,touchscreen keyboard,mute
Phonebook Search:Support search by name from A-Z
For IPOD Function
Main functions:for Iphone/ for ipad for ipod video,audio playback
Display:Song list,Artist,album,genres and composer
USB:Support USB,Support USB to read all phone files
Additional Features
DVR:Support independent driving record function,not effect all function of reception,such as DVD avx
Video OUT Function:CPU image can used as blackground video output
Parking Rearview Camera:Autoswitch in 3 seconds when parking(power off),Autio switch in o seconds when parking.(power on)
Steering wheel control:20 virtual keys setup
Can control:Automotive status display(temperature,fan,belts,wipe the blade,door clsoed and etc.
USB/SD card connector:USB/SD (MAX 32GB or <1500 files)
usb1.0 connector,Support for Samsung,for blackberry,for HTC,for Motorala and etc.
Note:without DVD function,and cant put CD
| | ||
Installation Tips
1. Check there is no damage on the packing you received.
2. Check there is no damage on products.
3. Test functions before install into your car; use 12-14v power supply connect and check functions.
4. Check your car information carefully. If your car cant check from our page,it might not compatible, please don’t install it. For high allocation cars with canbus, you need to cut off the cables.
5. After installed, please check if it can turn off when your car turn off. if not, please contact us.
NOTE: To make sure it can work well with your car, please try to make a test with our installation tips strictly.
